KEY STRENGTHS:

PH868-1 is designed to measure pH levels from 0~14 and has the following advance features: automatic calibration (ph4.0, pH7.0 & pH10.0), with high ingress protection rating - IP67 - 100% waterproof & dustproof, automatic temperature compensation (ATC), dual display (pH & temp), switchable °C & °F, data hold, low battery indicator, and auto power off that can be disable.

PH868-1 has also a built-in ATC to ensure 100% accuracy. Even the slightest change in temperature affects the accuracy of reading results; ATC lets the meter adjust or adopts current temperature of the environment without shifting or restarting the meter. PH868-1 is totally protected against dust & effects of immersion between .15m and 1m. It has a high Ingress Protection Ratings of IP67. An IP number is used to specify the environmental protection of enclosures around electronic equipment and was developed by the European Committee for Electro Technical Standardization. These ratings are determined by specific tests. It is composed of 2-3 numbers, the first referring to the protection from solid objects or materials (with 1-6 level), the second against liquids or water (with 1-8 levels) and the third against mechanical impacts. Higher IP number means better the protection.



Have the PH Meter with more value for your money!

PRE-CALIBRATED, READY TO USE !!!!!!!!

• 100% Water and Dust Proof

• Automatic Calibration just a single push of a button

• pH & Temperature display with switchable °C & °F

• Large display screen

• Free 3 Buffer solutions (PH4.0, PH7.0 & PH10.0)


Features: This device is very effective, reliable, easy and safe to use.

• IP67 waterproof & dustproof housing (totally protected against dust and water even on immersion up to 1m)
• Automatic Calibration with just a push of a button
• Easy 3 points Calibration (pH 4.00, 7.00,10.00)
• Comes with the Standard Buffer Solutions pH4.0, pH7.0 & pH10.0 USA standards
• Can measure alkaline solution
• Display Temperature & pH simultaneously
• Easy to switch between °C and °F
• Data Hold & ATC
• Auto Power off that can be disable
• Pen size, easy to fit in pocket
• Low battery indicator
• Easy to replace and assemble with new battery
• High quality and accurate testing results are guaranteed
• Approved by strict quality and safety standards
• Wide range of application: Pools, Aquariums, Labs, Aquaculture, Car washes, Water testing and Waste water treatment
• Totally Brand New



Specifications:

• IP Grade: IP67
• Measuring Range: 0~14pH
• Accuracy: ±0.2pH
• Resolution: 0.1pH
• Calibration Point: 4, 7, 10
• Temperature Accuracy: ±1°C
• Temperature Resolution: 0.5°C/°F
• Temperature compensation: 0~50°C
• Operating Condition
  • Operating Temperature: 0°C~50°C (32°F~122°F)
  • Operating Humidity: 0~80%RH
• Auto Power Off (Sleep Mode) with disable feature (idle for 20min)
• Self Calibration
• Display: 4-digit display
• 100% Waterproof & Dustproof (IP67)
• Dimension: 150 x 36 x 25mm (L x W x T)



Accessories included:

• FREE 3 x Buffer Powder Solutions: pH4, pH7, & pH10
• FREE 4 x Button Battery
• Operation Manual
• Protective Packaging Box


All our products are manufactured under the strict quality control guidelines established by EN ISO9001-2000 Standards

Operating Information:

1. Remove the out cover and the inner cap from the meter to expose the electrode out. White crystals are normally present on the cap or on the electrode
2. Dip the electrode into the test solution. Press "PWR" button and stir it to get a stable reading.
3. The small dot (.) in between the PH reading will flash on and off when measuring starts. The meter will display both pH and temperature (°C or °F).
4. Press "HLD" button to freeze current reading. Press "HLD" button again to release the hold mode.
5. Turn of the meter by pressing "PWR" button. Clean the electrode and put back the cover.


   PH CALIBRATION
   Easy to calibrate, Automatic Calibration with just a push of a button, no need to calibrate with screw driver !

   PH868-1 has a unique calibration design that features automatic buffer recognition to avoid error(s).

   1. Dip the electrode into pH7.0 buffer solution first.
   2. Just press calibration ("CAL") button to start the automatic calibration. "CA" will appear on the LCD for one second.

      An "En" text will be seen on the screen if the probe is damage or if the meter is in wrong calibration solution.

      Simply press the hold button to adjust the value if buffer solution is not 4, 7, or 10 such as pH3.5, 4.50, etc.


   3. When the meter exits the calibration mode, rinse the probe with distilled water or rinse solution like tap water
   4. Do step 1-3 to calibrate with pH4.0 & pH10.0 and the easy calibration is complete.

       TEMPERATURE UNIT SETTING (switching °C and °F)

1. Turn the meter off first.
2. Press the power button & calibration "CAL" button simultaneously.
3. Press hold "HLD" button to choose between °C and °F.
4. Press calibration "CAL" button to save the temperature unit. "SA" text will be seen on screen.

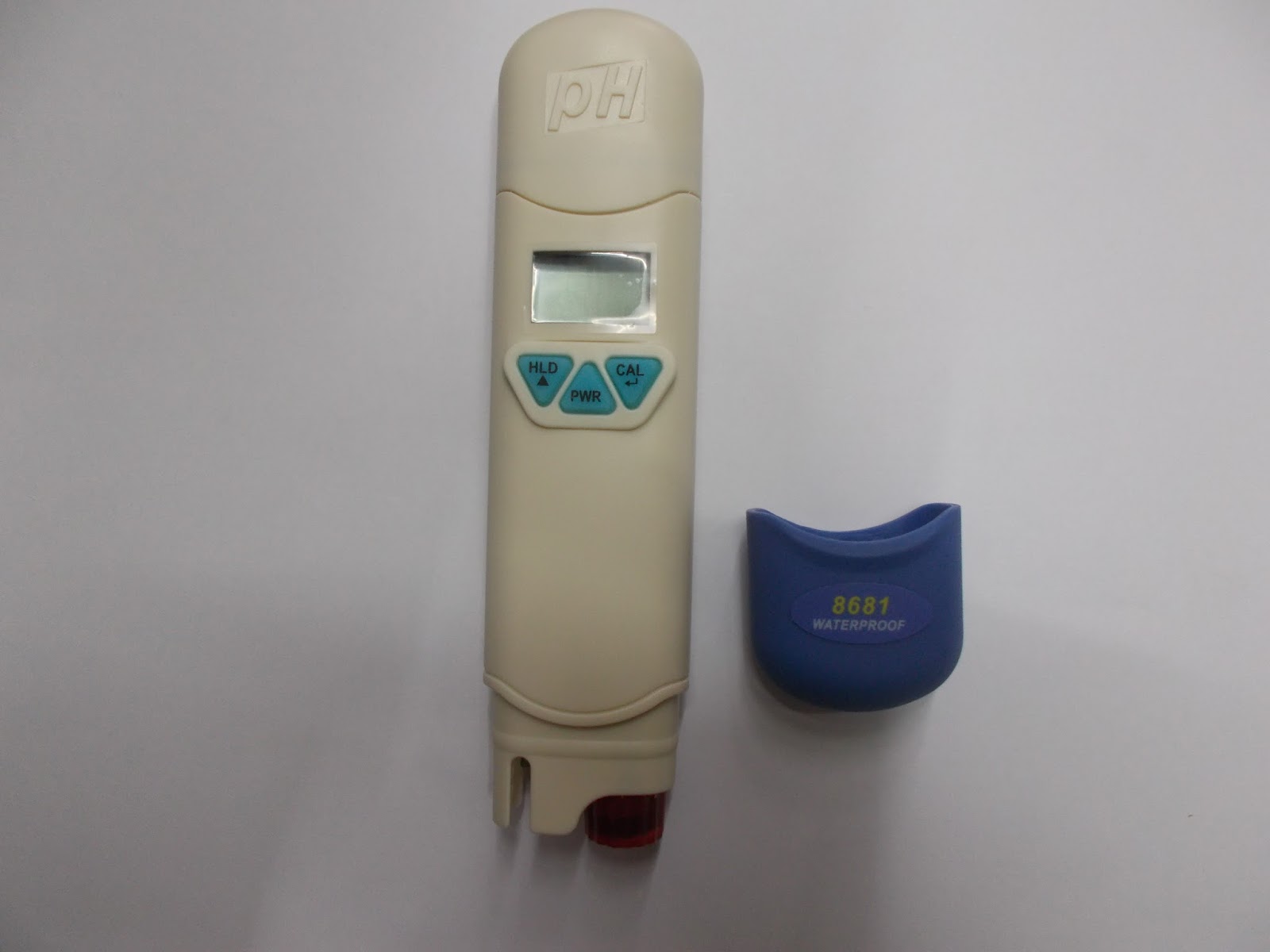

รูปลักษณ์โดยรวมของเครื่อง

มีพลาสติกครอบป้องกันอันตรายกับหัววัด

หัววัดเป็นแก้ว

เป็นพีเอชมิเตอร์ที่ใช้งานได้ง่ายมาก ๆ สามารถวัดอุณหภูมิได้ด้วย

ครับแม้แต่ผู้ใช้ที่ไม่มีประสบการณ์มาก่อนหน้าจอมี 3 ปุ่ม คือ

ปุ่มเปิด/ปิด, ปุ่มสำหรับคาลิเบรต, และปุ่มค้างค่าไว้เพื่ออ่าน

(ปุ่ม Hold)

คู่มือการใช้งานภาษาอังกฤษ
