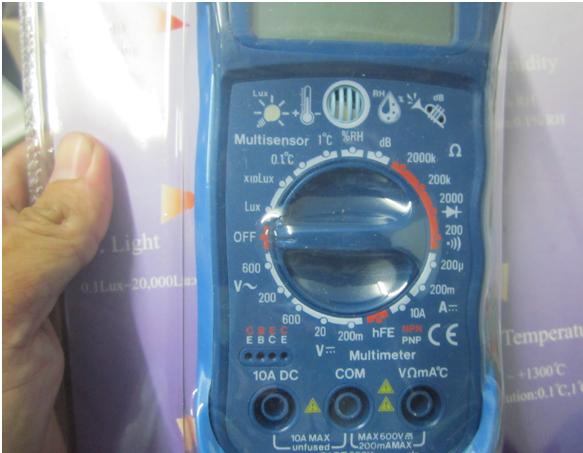

มิเตอร์วัดได้ 5 อย่างในเครื่องเดียวกัน, 5in1 Thermometer Light
Humidity Sound and Multi Meter tester
Product Description |
This is a brand new CEM DT-21 certified industrial digital multi-function environment meter. This 5-in-1 meter replaces 5 traditional meters to make your work a lot simpler and more efficient. Forget about the old analog devices, this newly designed digital light weight device gives you long lasting power with accurate measurement. The build-in Sound level, Light, Humidity, Temperature measuring, and Multimeter functions replace meters with over $600 combined cost.
|
Features |
5 in 1 Higher Performance Multi-Tester |
-
Condition: Brand new in retail plastic blister pack.
-
5 in 1 for Light meter, Sound Level meter, Relative Humidity meter, Temperature meter and Multimeter
-
3 1/2 digit display: 0 - 1999 count
-
11 Functions: measure Lux, sound level, Relative Humidity, Temperature, DC-V, AC-V, DC-A, Resistance, Transistor, Diode and Continuity test
-
Overload protection and indication for most ranges
-
Complete with rubber holster, 9V battery, test leads, temperature probe.
-
Dimensions/weight: 121.5 X 60.6 X 40mm / 150g
|
|
Specifications |
FUNCTION
|
RANGE
|
RESOLUTION
|
ACCURACY (%rdg+digits)
|
Temperature
|
-20 oC ~ 200 oC
|
0.1 oC
|
±(3.0%+3d)
|
-20 oC ~ 1300 oC
|
1 oC
|
±(3.0%+2d) ≤ 150 oC; ±3.0% ≥ 150 oC
|
light
|
200 Lux, 2000 Lux (x10 Lux)
|
0.1Lux, 1Lux
|
±(4.0%+3d)
|
humidity
|
25% ~ 95%RH
|
0.1%RH
|
±(5.0%+3d)
|
sound Level
|
35 ~ 100dB
|
0.1dB
|
±(10%+3d)
|
DC Voltage
|
200mV, 20V, 600V
|
0.1mV, 10mV, 1V
|
±(0.5%+2d)
|
AC Voltage
|
200V, 600V
|
10mV, 1V
|
±(1.2%+10d)
|
DC Current
|
200uA
|
0.1uA
|
±(1.0%+2d)
|
200mA,10A
|
0.1mA, 10mA
|
±(1.2%+2d); ±(3.0%+2d)10A
|
Resistance (Ω)
|
200, 2K, 200K, 2M
|
0.1Ω, 1Ω, 0.1KΩ, 1KΩ
|
±(0.8%+3d); ±(1.0%+2d)2M
|
Transistor Test
|
0-1000hFE of PNP or NPN transistors Vce:approx.2.8VDC; Base current:aaprox.10uA
|
Diode Check
|
Test Current 1.4mA; Open circuit Voltage 2.8V
|
Continuity Check
|
Threshold 50Ω, Continuity Beeper 2.5KHz
|
|
