เครื่องวัดแสงสเปคตรัม, Spectrum Transmission
Meter Tester UV 365nm, VL 380nm-760nm,
IR 950nm model LS-103

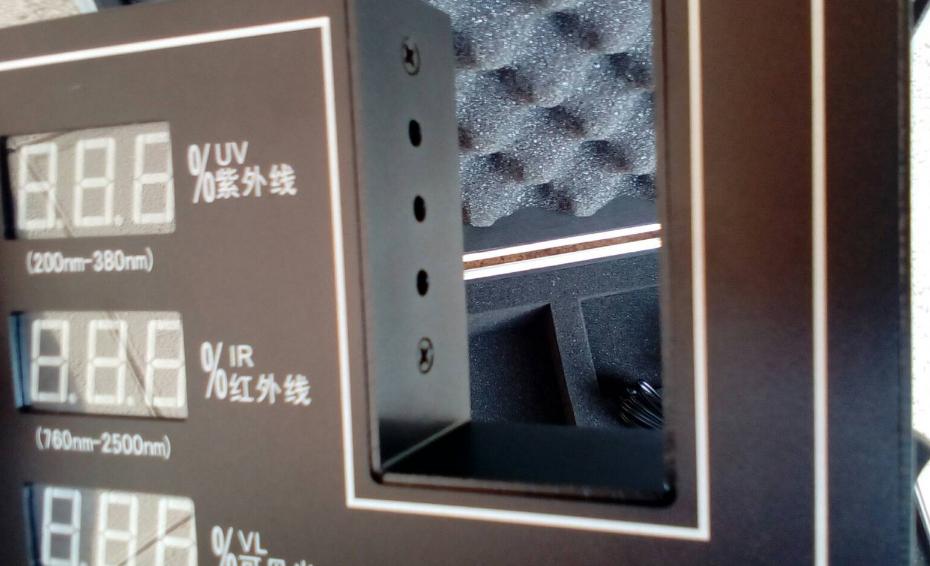

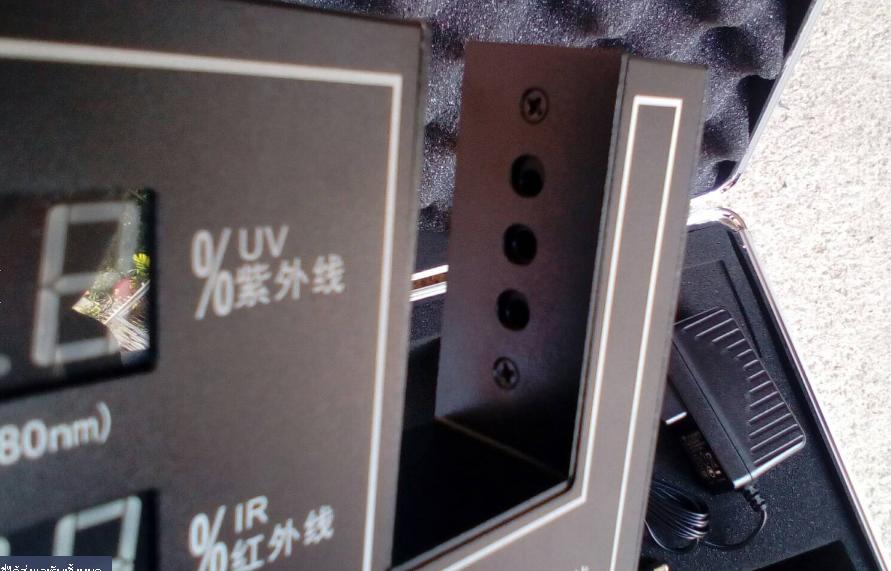

LS103 is able to simultaneously measure and display UV,
Visible and Infrared transmission values. This meter is
self-contained light sources and self -calibration.
No adjustment is needed.
Parameter
1. Size: 160 mm. * 115 mm. * 33 mm.(L*W*H)
2. Testing opening : Wide 43 mm. * Height 76 mm.
3. Weigh : 425 g.
4. Resolution : measure value <10% is 0.1%, other range is 1%
5. Accuracy : +-2%(Colorless and transparent material)
6. UV center wavelength : 365 nm
7. Visible light wavelength : 380 nm~760 nm (Full Weighted Spectrum)
8. IR Center wavelength 950 nm
9. Power supply : 9V DC
Feature
1. UV transmission meter, IR transmission meter, Light Transmittance Meter, Three function in ONE device.
2. Self-calibration and auto -calibration, NO need any manual adjustments
3. Simple operation, putting the testing sample in the opening, UV, Visible and Infrared transmission values of the sample will simultaneously display.
